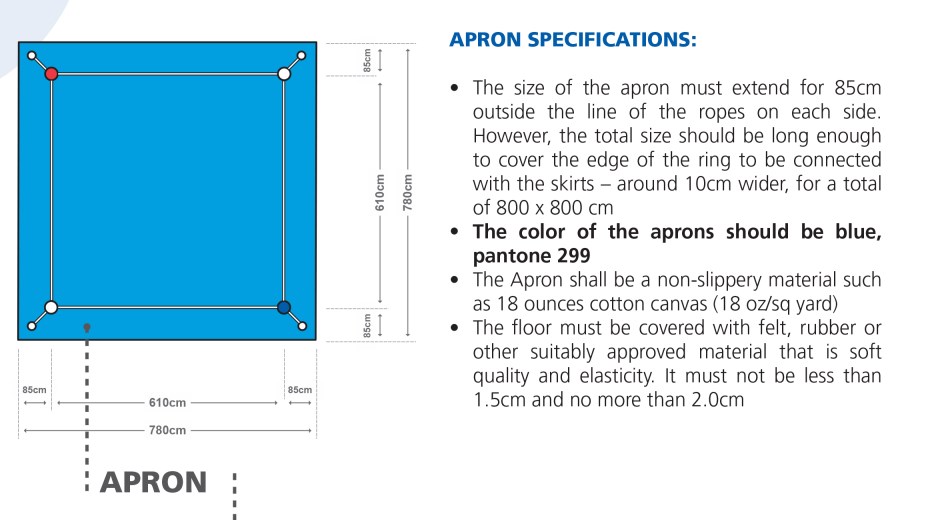

Professional standard competition boxing ring for boxing event boxing match, it is 7.8meter x7.8meter, and with elevated platform 1m high, the size which means from outside to another outside. The competition area that the size of combat area is 6.1meter x 6.1meter, which is about 400.75 square feet.
The material is thicken metal steel tube with color painted .
Details as follow:
The stage corner column is made of steel box. Not less than 5 inches in size, not less than
2.50 mm. height not less than 2.65 m, 4 trees, red columns
1 tree , 1 blue pole and 2 white poles
For the red and blue poles, there must be a boxer’s chair. finished installation
Comes with a water funnel, 1 set per side
The center pillar is made of box steel. Size not less than 4×2 inches, not less than height.
80 cm., 4 trees for supporting the secondary beams from 4 directions, with
Plates or grooves inserted on the side of the pillar for connecting structures
Supporting columns, size 1.5×1.5 inches, thickness not less than 2 mm., 21 pieces .
Steel structures for this AIBA standard boxing ring :
Main beam size 4×2 inches , consisting of 12 pieces of beams, the length of not less than
1. 2.4 m per piece , each piece of main beam shall not be less than 2 mm thick.
2 . Secondary beam, size not less than 2×4 inches, thickness not less than 2 mm., total 21 pieces .
3 . Beams support the stage floor. Size not less than 1/4 inch, thickness not less than 2 mm. 18 pieces
4 . The lower beam support is placed at the connection point between the beams. with a steel lock prevent movement
5. All parts of the steel structure can be disassembled independently
For the cushion: It is a material made of EVA foam, thickness not less than 1.5 inches, not more than 2 inches, with high flexibility, not less 18 sheets.
Canvas cover : Made of blue calico material ,one of pvc material.
The width is not less than 7.20×7.20 meters.
Accept free customized according to your designs, and if need logo stamped, that’s ok, we can offer logo added in free service.
Let’s start a cooperation from now on!
